About this item

• High Quality Terminals: High-quality insulated crimp terminal connector. Scale down to 1/3 of the original size. Heat activated adhesive seals the connection to the element. Your wires won't slip out.
• Safe Design: 3 color ( Red Blue Yellow) make it easy to identify the right size of the connector and purposes of use. The copper barrel provides greater current flow and ensures less voltage drop, preventing wiring failures and reducing equipment downtime.

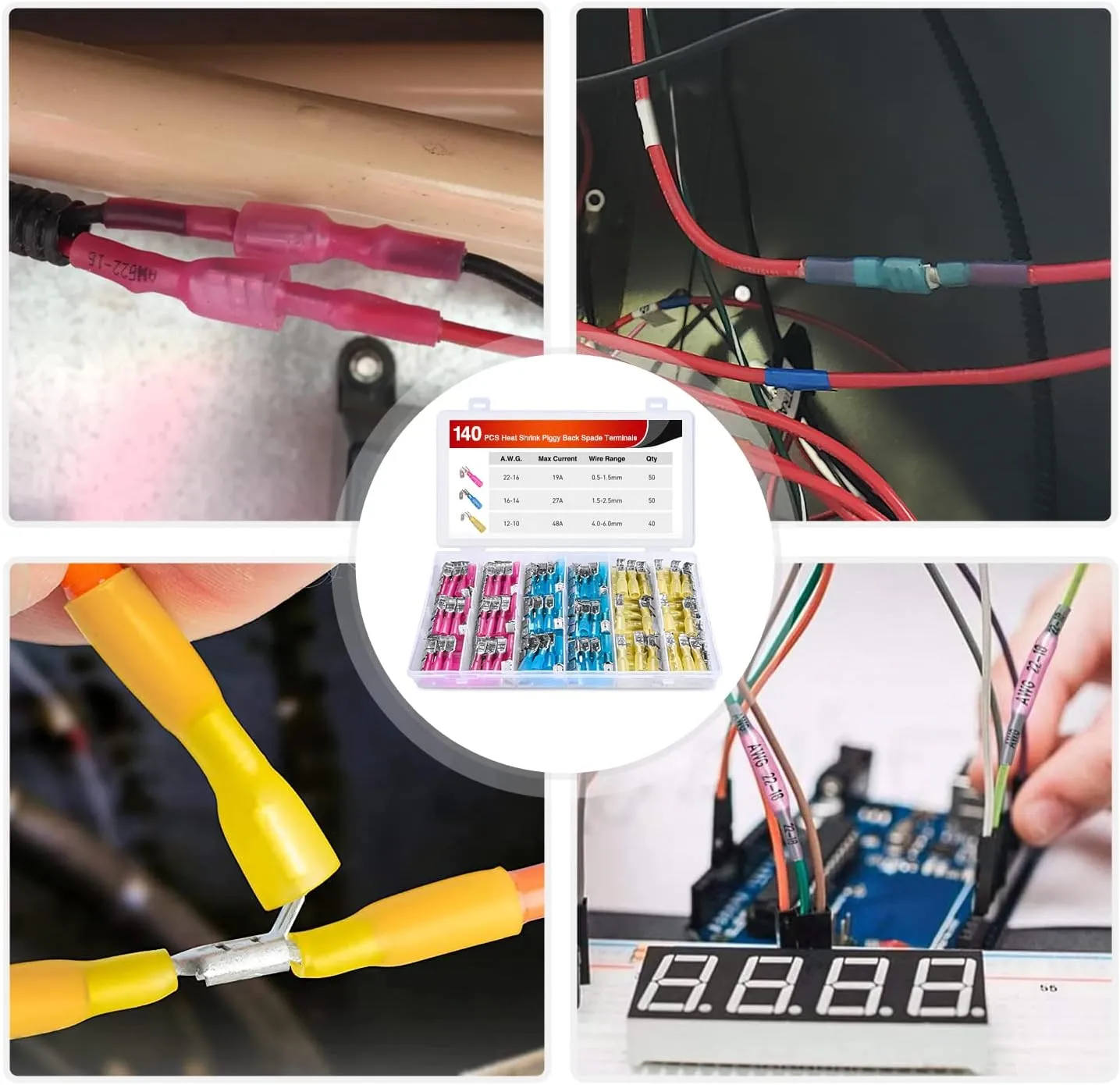

• Widely Application: All essentials for home, shop or outdoors. A practical selection of terminals and connectors for quick electrical repairs. It is suitable for automotive battery wiring, and other for home use.
• Wire Range: 22-16 A. W. G; 0. 5-1. 5mm (Red); 16-14 A. W. G; 1. 5-2. 5mm (Blue); 12-10 A. W. G; 4-6mm (Yellow) , Max Current: Red: 19A; Blue: 27A; Yellow: 48A.

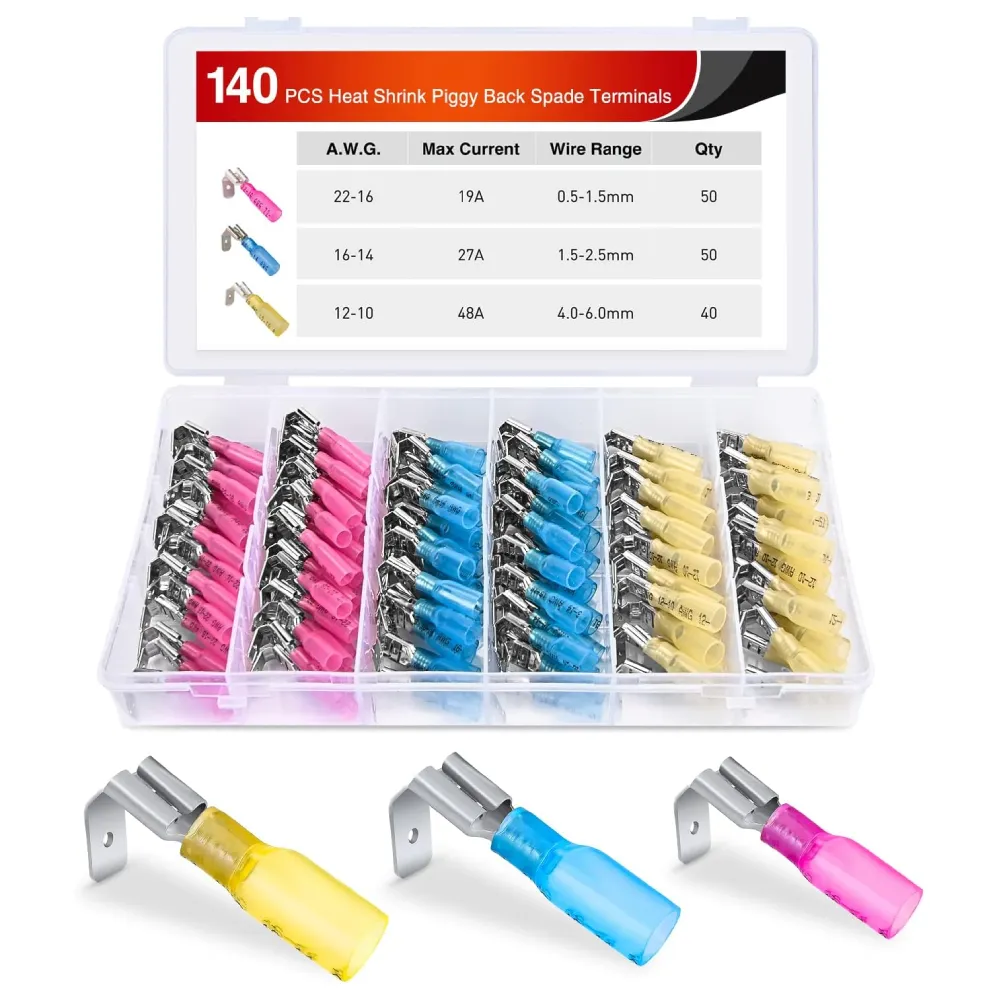

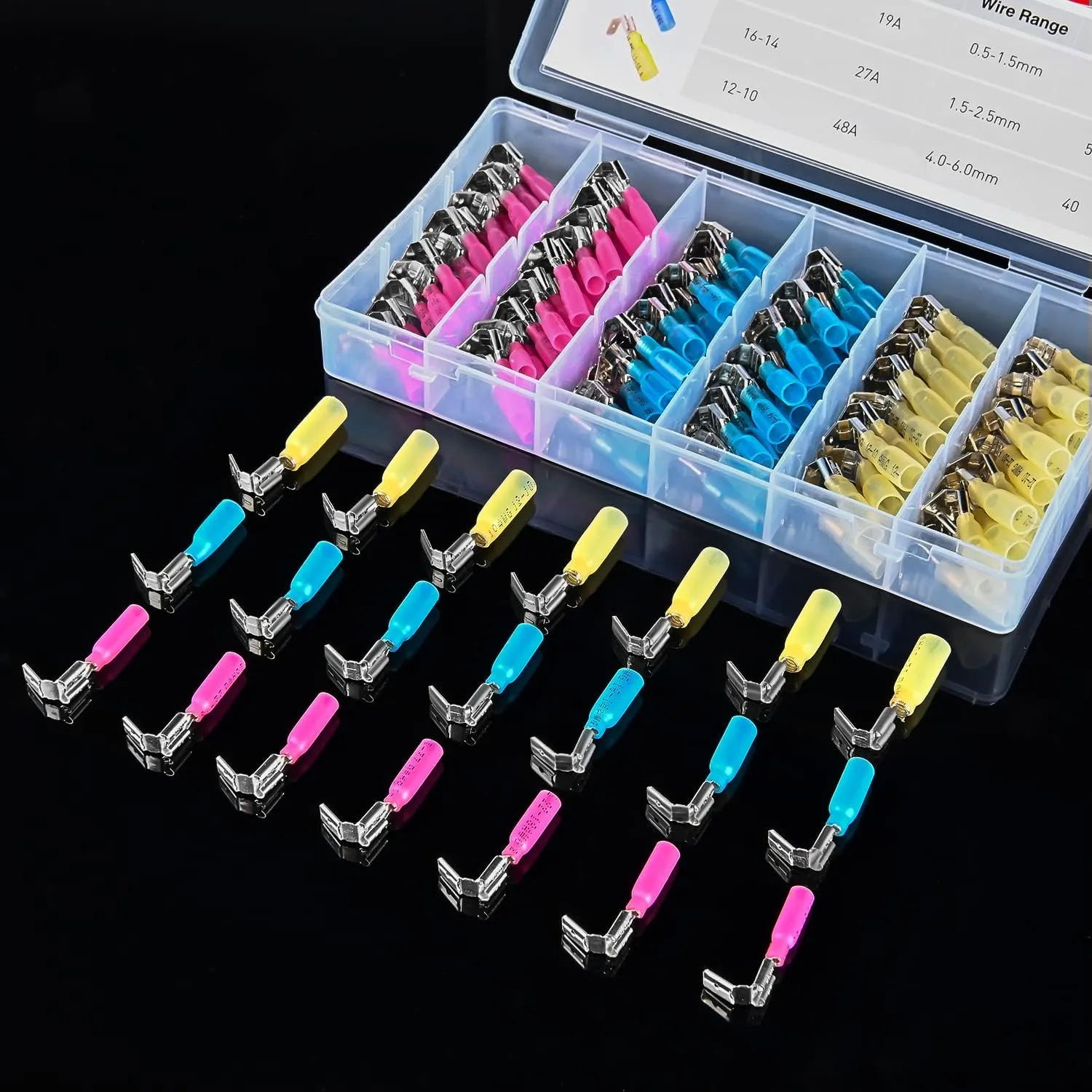

• Package includes:140PCS Heat Shrink Piggy Back Spade Terminals. Red: 50pcs; Blue: 50pcs; Yellow: 40pcs. 2 Year Warranty by Nilight.

Heat Shrink Piggy Back Spade Terminals

Make wiring more easier and convenient!

Nilight 140PCS Heat Shrink Piggy Back Spade Terminals Connectors was design to protect the wires connections from Danger of leakage. Nilight heat shrink connectors have three size which can be used to connect the wires from 22AWG to 10AWG. 1mm thick red cooper barrel can increase current flow and avoid the shortage for poor connections. Nylon hot-melt adhesive with waterproof gel provides excellent waterproof performance.

Features

Easy To Identify

Three size options (Yellow, Blue, Red) can be used to connected the wires range from 22AWG-10AWG.

Translucent Tube

Translucent heat shrink tube is easy check the connection of the inner wires.

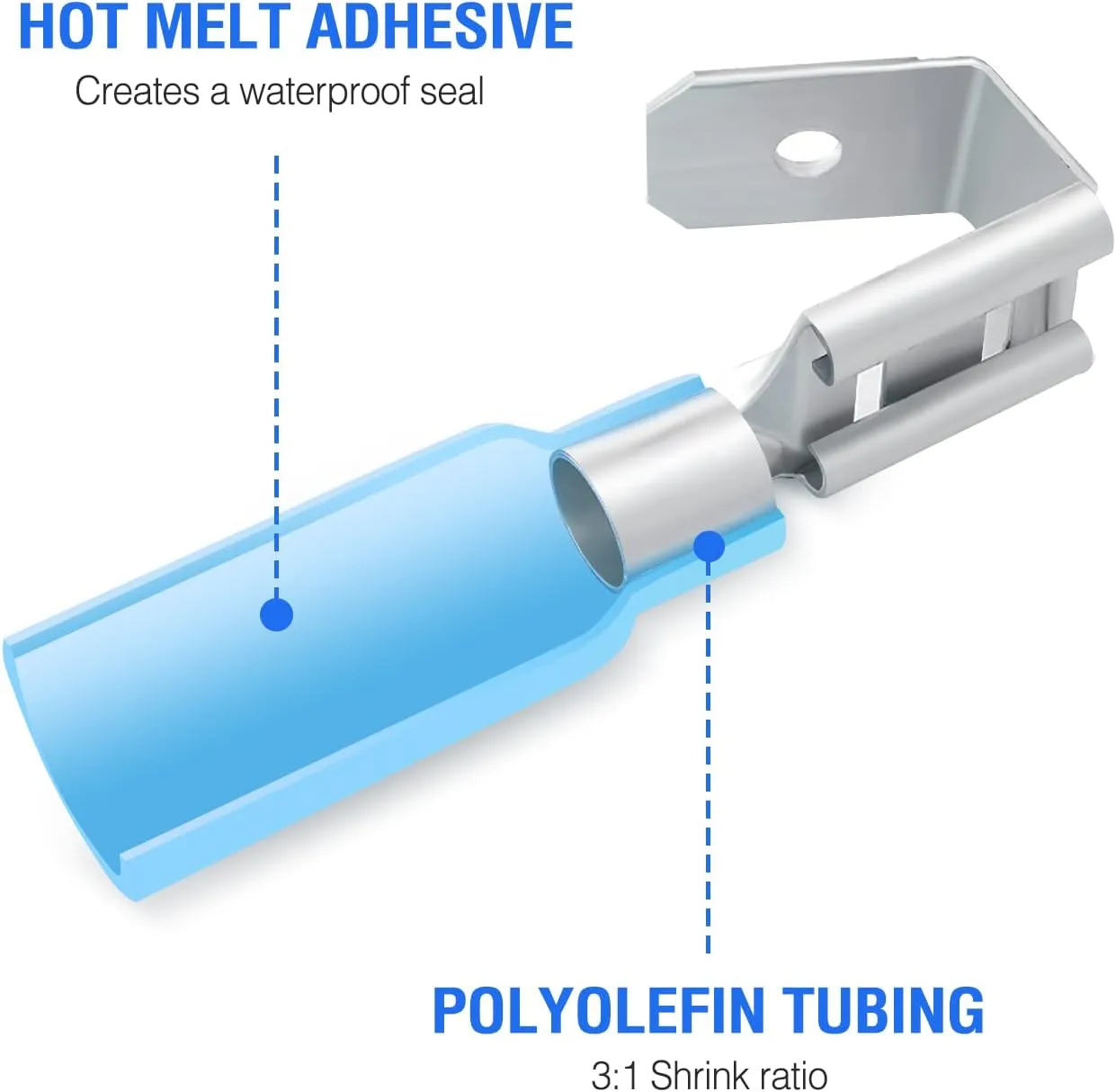

Shrinkage ratio 3:1

Shrinks to 1/3 of its original size. Heat activated adhesive seals the connection from the elements.

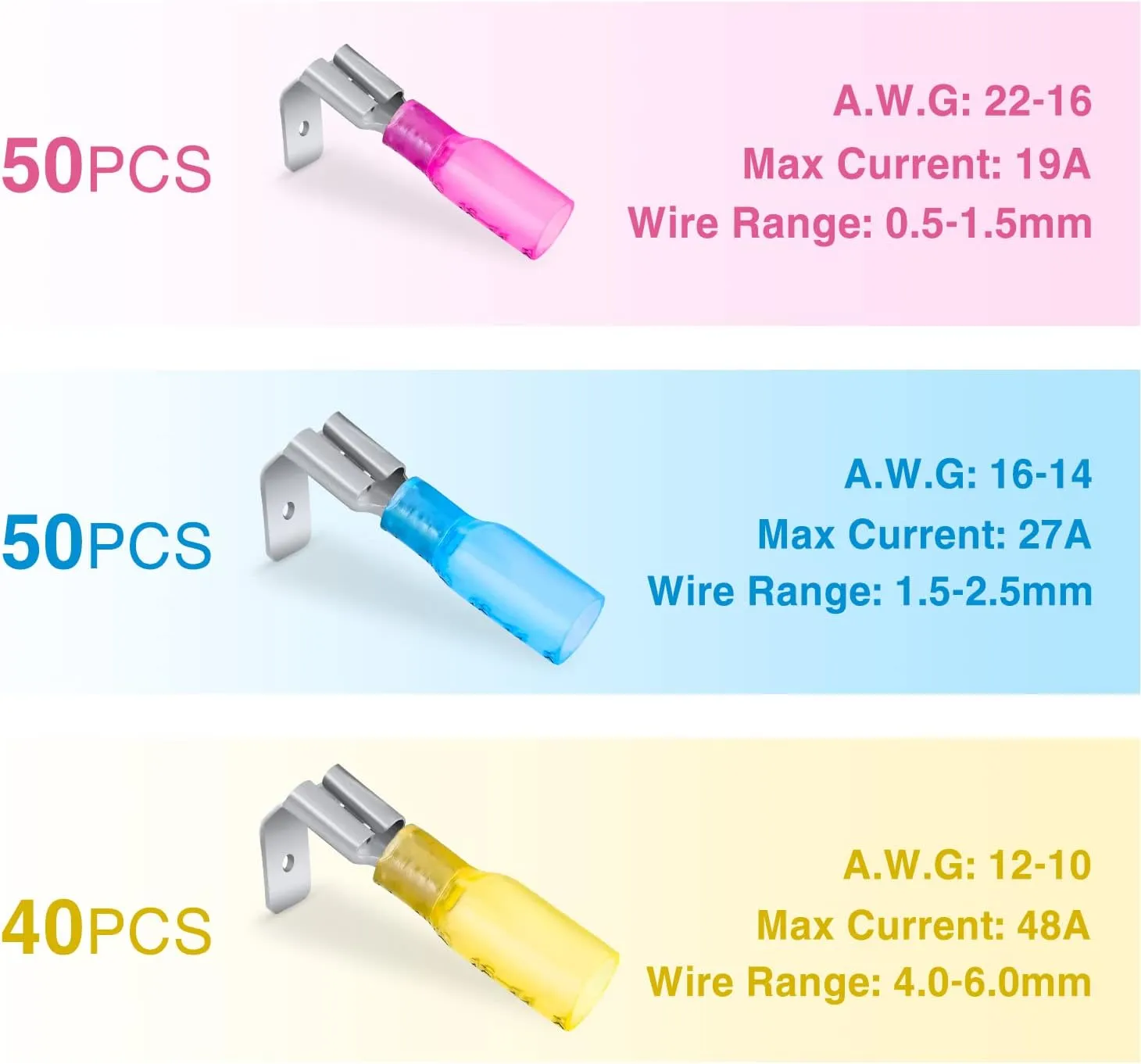

Yellow Connectors

• 40PCS
• A.W.G. 12-10
• Max Current: 48A
• Wire Range: 4.0-6.0mm

Blue Connectors

• 50PCS
• A.W.G. 16-14
• Max Current: 27A
• Wire Range: 1.5-2.5mm

Red Connectors

• 50PCS
• A.W.G. 22-16
• Max Current: 19A
• Wire Range: 0.5-1.5mm

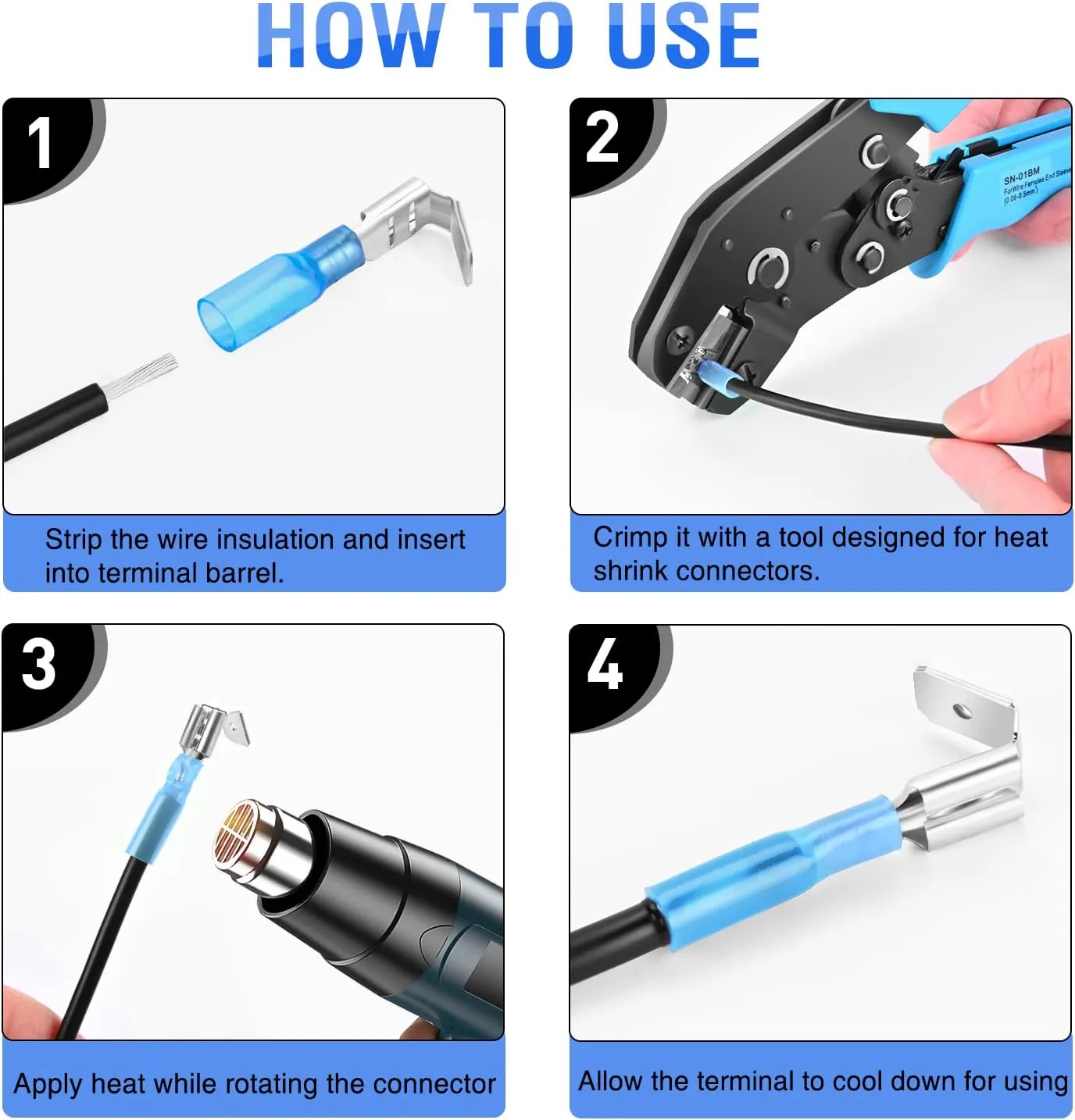

Connection Steps

Step 1：

Strip the wire insulation and insert into terminal barrel.

Step 2：

Crimp it with a tool designed for heat shrink connectors.

Step 3：

Apply heat while roating the connectors.

Step 4：

Allow the terminal to cool down for using.
